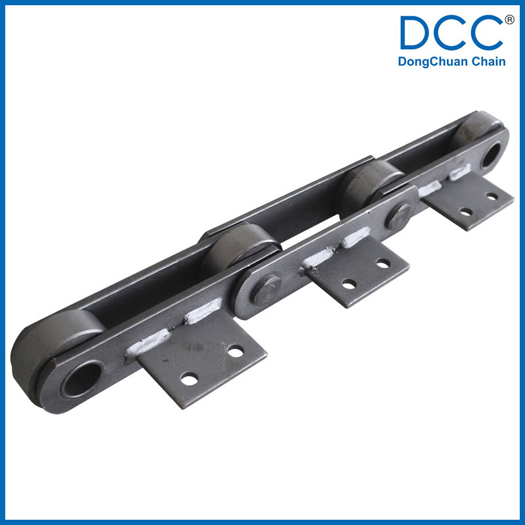

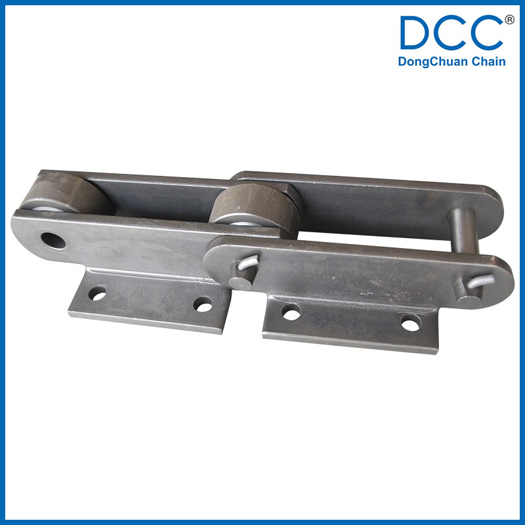

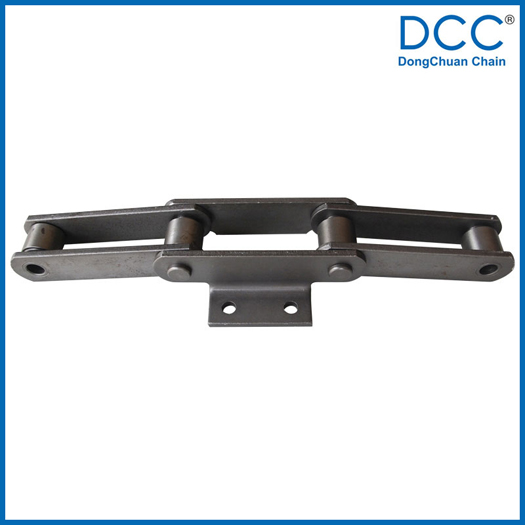

我公司針對棕櫚油鏈應用場所的環境，還為客戶提供棕櫚油鏈附件，以便使棕櫚油鏈具有不同的功能。附件都經過耐腐蝕、耐磨損等強化處理，提高了附件的抗拉強度。

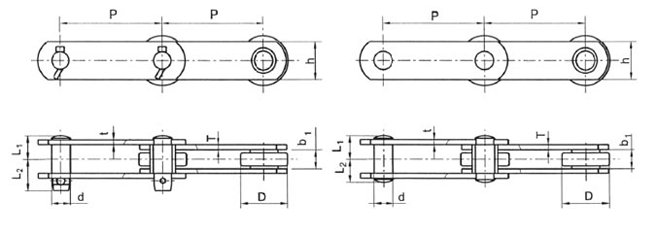

| Matching chain no. | L (mm) | L3 (mm) | d (mm) | Attachment type |
| 86.8 | 36 | M16 | A | |
| 86.8 | 36 | M16 | A | |
| 96.8 | 39.7 | M20 | A | |
| 110.5 | 44 | M24 | A | |
| 131.5 | 50 | M27 | B |

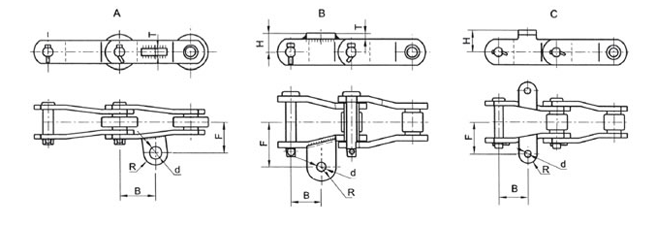

| Matching chain no. | H (mm) | T (mm) | B (mm) | F (mm) | R (mm) | D (mm) | Attachment type |
| 15 | 76.2 | 66.7 | 25.4 | 20.64 | A | ||
| 20.7 | 6.4 | 33.08 | 48.4 | 15.875 | 10 | B | |
| 38.1 | 8 | 50.8 | 111.2 | 15.9 | 11.12 | C |

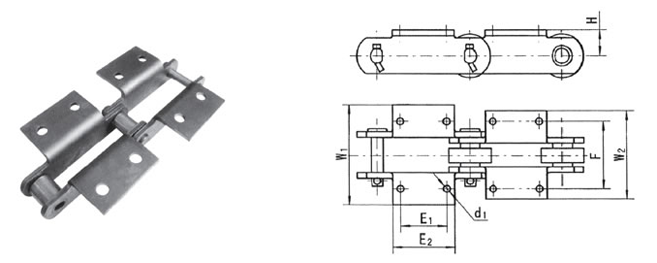

| Matching chain no. | H(mm) | E1(mm) | E2(mm) | d1(mm) | F(mm) | W1(mm) | W2(mm) |
| 38.1 | 60 | 101.6 | 15 | 120 | 187.3 | 170.2 |

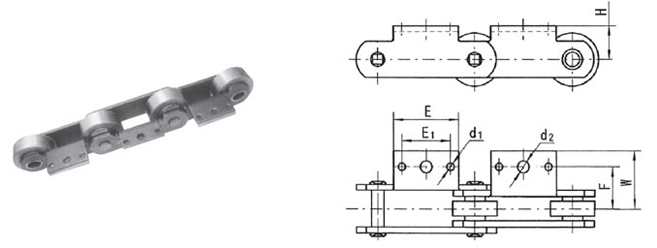

| Matching chain no. | H(mm) | E1(mm) | E(mm) | d1(mm) | d2（mm) | F(mm) | W(mm) |
| 31.75 | 31.75 | 67.5 | 10.71 | 13.89 | 44.45 | 75.8 |
